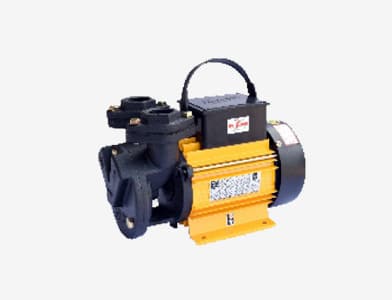

V-FLOW
TINY
PEARL

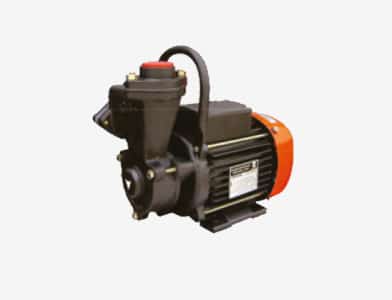

MINI 28S, MINI 40S, MINI 50S
MEGA 54S
JALRAAJ-ULTRA
CHHOTU
CMS
CBR 140
Pressure Boosting Pump
K-BOOSTER
High Lifter – HL series
CPBS

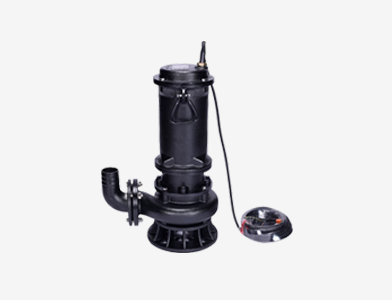

Sewage / Dewatering Submersible Pumps
SW / BW
ETERNA CW
Monobloc Pumps
ANNIKA
DC
PAMBA PUZHA

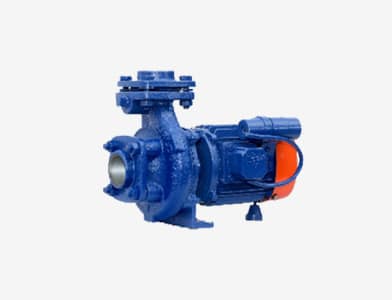

KDS SINGLE PHASE
KAM
Hasti
Openwell Submersible Pumps
JVS
Open well Submersible Pumps – KOSi
KOS M THREE PHASE

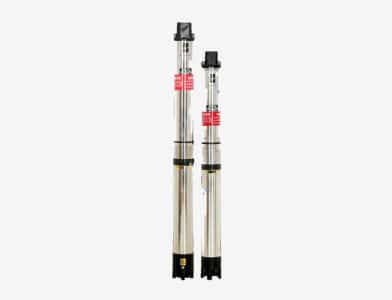

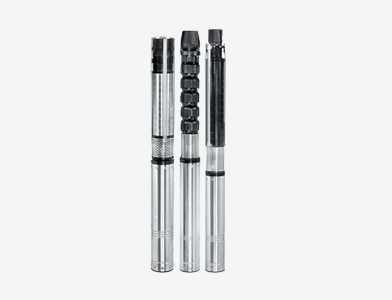

Borewell Waterfilled Submersible Pumps
Borewell Submersible Pump – LEHR
Borewell Submersible Pump- KS3 Purna
Borewell Submersible Pump – NEO
ANNIKA
Specifications
ANNIKA - I (Bronze)
| Head Rangex | 6-24m |
|---|---|
| Capacity Range | 2600 to 700 LPH |
| Power Rating | 0.75 kW/1 HP |
| Phase | Single |
| Voltage Range | 160-260 Volts |
| Insulation | ‘B’ Class |
ANNIKA - II (Bronze)
| Head Range | 6-21m |
|---|---|
| Capacity Range | 2000 to 500 LPH |
| Power Rating | 0.37 kW/0.5 HP |
| Phase | Single |
| Voltage Range | 160-260 Volts |
| Insulation | ‘B’ Class |
Material of Construction
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminum |
| Shaft | Carbon Steel |
| Cover NDE | Aluminum |
| Mechanical Seal/th> | Carbon Vs. Ceramic |
APPLICATIONS
Water supply to overhead tanks in bungalows
Domestic water supply
Feed water to RO plants
Construction sites
Lawn sprinklers
Garden and fountains
Car washing
FEATURES
High Efficiency and Energy Saving Design
Wide Voltage Range
Shielded Ball Bearing
Dynamically Balanced Rotating Parts
Easy Maintainable Designs
High Suction Lift
Enhanced Safety Features
Cathodic Electro Deposition (CED) Coating
Light Weight and Compact Design
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Water Storage
Fountain
ANISA
Specifications
ANISA - I (Bronze)
| Head Range | 6-24m |
|---|---|
| Capacity Range | 2600 to 700 LPH |
| Power Rating | 0.75 kW/1 HP |
| Phase | Single |
| Voltage Range | 160-260 Volts |
| Insulation | ‘B’ Class |
ANISA - II (Bronze)
| Head Range | 6-21m |
|---|---|
| Capacity Range | 2000 to 500 LPH |
| Power Rating | 0.37 kW/0.5 HP |
| Phase | Single |
| Voltage Range | 160-260 Volts |
| Insulation | ‘B’ Class |
Material of Construction
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminum |
| Shaft | Carbon Steel |
| Cover NDE | Aluminum |
| Mechanical Seal/th> | Carbon Vs. Ceramic |
APPLICATIONS
Water supply to overhead tanks in bungalows
Domestic water supply
Feed water to RO plants
Construction sites
Lawn sprinklers
Garden and fountains
Car washing
FEATURES
High Efficiency and Energy Saving Design
Wide Voltage Range
Shielded Ball Bearing
Dynamically Balanced Rotating Parts
Easy Maintainable Designs
High Suction Lift
Enhanced Safety Features
Cathodic Electro Deposition (CED) Coating
Light Weight and Compact Design
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Water Storage
Fountain
Aqua Torrent - 10FCL
Overview
SPECIFICATIONS
| Head Range | Up to 42 metres |
|---|---|
| Capacity Range | Up to 3500 LPH |
| Power Ratings | 0.75 kW / 1.0 HP |
| Voltage Range | 180 to 260 volts (single phase) |
MATERIAL OF CONSTRUCTION
| Impeller | Stainless Steel |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Sheet Metal |
| Shaft | Stainless Steel |
| Cover NDE | Cast Iron |
| Mechanical Seal | Carbon Vs Ceramic |
APPLICATION
Gardening and Irrigation
Domestic water supply
Construction sites
Lawn sprinklers
Water supply to overhead tanks in bungalows
Line Boosting
FEATURES
Higher Suction Capability
CED – Cathodic Electro Deposition Coating
High Grade F - Class Insulation
Wide Voltage Design
Dynamically Balanced Rotating Parts
Thermal Overload Protector (TOP)
Easy Maintainable Designs
High Suction Lift
Enhanced Safety Features
Robust Construction
Primary Usage
Residential Apartments
Overhead Tank
Water Storage
Fountain
AQUA KNIGHT
Specifications
Aqua Knight 50:
| Head Range | 6-30m |
|---|---|
| Capacity Range (LPH) | 1700 to 150 LPH |
| Power Rating (HP) | 0.37 kW/0.5 HP |
| Phase | Single |
| Voltage Range (Volts) | 180-240 Volts |
| Insulation | ‘B’ Class |
Aqua Knight 100:
| Head Range | 6-33m |
|---|---|
| Capacity Range (LPH) | 1950 to 500 LPH |
| Power Rating (HP) | 0.75 kW/1.0 HP |
| Phase | Single |
| Voltage Range (Volts) | 180-240 Volts |
| Insulation | ‘B’ Class |
Material of Construction
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminum |
| Shaft | Carbon Steel |
| Cover NDE | Aluminum |
| Mechanical Seal | Carbon Vs. Ceramic |
| Suction & Delivery Casing | Stainless Steel |
| Suction & Delivery Chamber | CED Coated Cast Iron |
APPLICATIONS
Gardening and Irrigation
Line Boosting
Domestic water supply
Lawn sprinklers
Construction sites
Water supply to overhead tanks in bungalows
FEATURES
High Efficiency and Energy Saving Design
Thermal Overload Protector (TOP)
Higher Suction Capability
Wide Voltage Design
Shielded Ball Bearing
Dynamically Balanced Rotating Parts
Easy Maintainable Designs
Light Weight and Compact Design
High Suction Lift
Enhanced Safety Features
Primary Usage
Overhead Tank
Water Supply
JALHANSA
Specifications
Jalhansa (Silver) Model Jalhansa-II
| Head Range | 6-28m |
|---|---|
| Capacity Range (LPH) | 2050 to 400 LPH |
| Power Rating (HP) | 0.37 kW/0.5 HP |
| Phase | Single |
| Voltage Range (Volts) | 180-260 Volts |
| Insulation | ‘B’ Class |
Model Jalhansa-I
| Head Range | 6-40m |
|---|---|
| Capacity Range (LPH) | 3200 to 950 LPH |
| Power Rating (HP) | 0.75 kW/1.0 HP |
| Phase | Single |
| Voltage Range (Volts) | 180-260 Volts |
| Insulation | ‘B’ Class |
Jalhansa (Bronze) Model Jalhansa-II
| Head Range | 6-26m |
|---|---|
| Capacity Range (LPH) | 2050 to 500 LPH |
| Power Rating (HP) | 0.37 kW/0.5 HP |
| Phase | Single |
| Voltage Range (Volts) | 180-260 Volts |
| Insulation | ‘B’ Class |
Model Jalhansa-I
| Head Range | 6-40m |
|---|---|
| Capacity Range (LPH) | 3100 to 850 LPH |
| Power Rating (HP) | 0.75 kW/1.0 HP |
| Phase | Single |
| Voltage Range (Volts) | 180-260 Volts |
| Insulation | ‘B’ Class |
Material of Construction
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminum |
| Shaft | Carbon Steel |
| Cover NDE | Aluminum |
| Mechanical Seal | Carbon Vs. Ceramic |
APPLICATIONS
Gardens and fountains
Feed water to RO plants
Domestic water supply
Water supply to overhead tanks in bungalows
Construction sites
Car washing
Lawn sprinklers
FEATURES
High Efficiency and Energy Saving Design
High-Grade F - Class Insulation
Thermal Overload Protector (TOP)
Wide Voltage Design
Shielded Ball Bearing
Dynamically Balanced Rotating Parts
Easy Maintainable Designs
High Suction Lift
Enhanced Safety Features
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
JALNAYAK
TECHNICAL Specifications
JALNAYAK - (GOLD) Model Jalnayak-II (Gold)
| Head Range | 6-30m |
|---|---|
| Capacity Range | 2650 to 660 (LPH) |
| Power Rating | 0.37 kW/0.5 (HP) |
| Phase | Single |
| Voltage Range | 180-260 Volts (Single Phase), 300-440 Volts (Three Phase) |
| Insulation | ‘F’ Class |
Model Jalnayak-I (Gold)
| Head Range | 6-48m |
|---|---|
| Capacity Range | 4050 to 1040 (LPH) |
| Power Rating | 0.75 kW/1.0 HP |
| Phase | Single/Three |
| Voltage Range | 180-260 Volts (Single Phase), 300 – 440 Volts (Three Phase) |
| Insulation | ‘F’ Class |
Material of Construction
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminum Die Cast |
| Shaft | Carbon Steel |
| Mechanical Seal | Carbon Vs. Ceramic |
APPLICATIONS
Water supply to overhead tanks in bungalows
Domestic Water Supply
Feed water to RO Plants
Construction sites Lawn sprinklers
Gardens and fountains
Car washing
FEATURES
High Efficiency and Energy Saving Design
High-Grade F - Class Insulation
Thermal Overload Protector (TOP)
Cathodic Electro Deposition (CED) Coating
Wide Voltage Range
Shielded Ball Bearing
Dynamically Balanced Rotating Parts
Easy Maintainable Designs
High Suction Lift
Enhanced Safety Features
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
JALSENA
Specifications
JALSENA GOLD Model Jalsena-II (Gold)
| Head Range | 6-28m |
|---|---|
| Capacity Range | 2600 to 650 LPH |
| Power Rating | 0.37 kW/0.5 (HP) |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation | ‘F’ Class |
Model Jalsena-I (Gold)
| Head Range | 6-45m |
|---|---|
| Capacity Range | 3370 to 760 LPH |
| Power Rating | 0.75 kW/1.0 HP |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation | ‘F’ Class |
JALSENA SILVER Model Jalsena-II (Silver)
| Head Range | 6-30m |
|---|---|
| Capacity Range | 2500 to 500 LPH |
| Power Rating | 0.37 kW/0.5 (HP) |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation | ‘B’ Class |
Model Jalsena-I (Silver)
| Head Range | 6-41m |
|---|---|
| Capacity Range | 3250 to 900 LPH |
| Power Rating | 0.75 kW/1.0 HP |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation | ‘B’ Class |
Material of Construction
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminum |
| Shaft | Carbon Steel |
| Cover NDE | Aluminum |
| Mechanical Seal | Carbon Vs. Ceramic |
APPLICATIONS
Gardens and fountains
Feed water to RO plants
Domestic water supply
Water supply to overhead tanks in bungalows
Construction sites
Car washing
Lawn sprinklers
FEATURES
High Efficiency and Energy Saving Design
High-Grade F - Class Insulation
Thermal Overload Protector (TOP)
Wide Voltage Range
Shielded Ball Bearing
Dynamically Balanced Rotating Parts
Easy Maintainable Designs
High Suction Lift
Enhanced Safety Features
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
JALTARA
Specifications
JALTARA - (GOLD) Model Jaltara-II (Gold)
| Head Range | 6-36m |
|---|---|
| Capacity Range | 3000 to 850 LPH |
| Power Rating | 0.37 kW/0.5 (HP) |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation | ‘F’ Class |
Model Jaltara-I (Gold)
| Head Range | 6-55m |
|---|---|
| Capacity Range | 4300 to 800 LPH |
| Power Rating | 0.75 kW/1.0 HP |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation | ‘F’ Class |
Material of Construction
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminum |
| Shaft | Carbon Steel |
| Cover NDE | Aluminum |
| Mechanical Seal | Carbon Vs. Ceramic |
APPLICATIONS
Gardens and fountains
Feed water to RO plants
Domestic water supply
Water supply to overhead tanks in bungalows
Construction sites
Car washing
Lawn sprinklers
FEATURES
High Efficiency and Energy Saving Design
High-Grade F - Class Insulation
Thermal Overload Protector (TOP)
Wide Voltage Range
Shielded Ball Bearing
Dynamically Balanced Rotating Parts
Easy Maintainable Designs
High Suction Lift
Enhanced Safety Features
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
JALHASTI
Specifications
JALHASTI - (GOLD) Model Jalhasti-II (Gold)
| Head Range | 6-36m |
|---|---|
| Capacity Range | 2900 to 820 LPH |
| Power Rating | 0.37 kW/0.5 (HP) |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation | ‘F’ Class |
Model Jalhasti-I (Gold)
| Head Range | 6-50m |
|---|---|
| Capacity Range | 4280 to 1000 LPH |
| Power Rating | 0.75 kW/1.0 HP |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation | ‘F’ Class |
Material of Construction
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminum |
| Shaft | Carbon Steel |
| Cover NDE | Aluminum |
| Mechanical Seal | Carbon Vs. Ceramic |
APPLICATIONS
Gardens and fountains
Feed water to RO plants
Domestic water supply
Water supply to overhead tanks in bungalows
Construction sites
Car washing
Lawn sprinklers
FEATURES
High Efficiency and Energy Saving Design
High-Grade F - Class Insulation
Thermal Overload Protector (TOP)
Wide Voltage Range
Shielded Ball Bearing
Dynamically Balanced Rotating Parts
Easy Maintainable Designs
High Suction Lift
Enhanced Safety Features
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
JALDAKSH
Specifications
Jaldaksh (Silver)
| Head Range | 6 to 40 m |
|---|---|
| Capacity Range | 3300 to 760 LPH |
| Power Rating | 0.75 kW/1.0 HP |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation Class | B Class |
Jaldaksh (Bronze)
| Head Range | 6 to 40 m |
|---|---|
| Capacity Range | 3000 to 750 LPH |
| Power Rating | 0.75 kW/1.0 HP |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation | B Class |
Material of Construction
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminum |
| Shaft | Carbon Steel |
| Cover NDE | Aluminum |
| Seal | Carbon Vs. Ceramic |
APPLICATIONS
Gardens and fountains
Feed water to RO plants
Domestic water supply
Water supply to overhead tanks in bungalows
Construction sites
Car washing
Lawn sprinklers
FEATURES
Cathodic Electro Deposition (CED) Coating
Advanced Electrical Design
Wide Voltage Range Operability
Lightweight and Compact Design
High Suction Lift
Enhanced Safety Features
Dynamically Balanced Rotating Parts
TOP - Thermal Overload Protector
Shielded Ball Bearing
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
RIAN
RIAN SPECIFICATIONS
| Head | 6 to 21 meters |
|---|---|
| Capacity Range | 1980 to 680 LPH |
| Power Rating | 0.37 kW / 0.5 HP |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation Class | B Class |
MATERIAL OF CONSTRUCTION
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminium |
| Pump Shaft | Carbon Steel |
| Cover NDE | Aluminium |
| Seal | Carbon Vs Ceramic |
APPLICATIONS
Water supply to overhead tanks in bungalows
Gardens / Fountains
Feed water to RO plants
Domestic water supply
Construction sites
Car washing
Lawn sprinklers
FEATURES
Cathodic Electro Deposition (CED) Coating
Advanced Electrical Design
Wide Voltage Range Operability
Lightweight and Compact Design
High Suction Lift
Enhanced Safety Features
Dynamically Balanced Rotating Parts
TOP - Thermal Overload Protector
Shielded Ball Bearing
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
ANAYA
ANAYA SPECIFICATIONS
| Head | 6 to 21 meters |
|---|---|
| Capacity Range | 1980 to 680 LPH |
| Power Rating | 0.37 kW / 0.5 HP |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation Class | B Class |
MATERIAL OF CONSTRUCTION
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminium |
| Pump Shaft | Carbon Steel |
| Cover NDE | Aluminium |
| Seal | Carbon Vs Ceramic |
APPLICATIONS
Water supply to overhead tanks in bungalows
Gardens / Fountains
Feed water to RO plants
Domestic water supply
Construction sites
Car washing
Lawn sprinklers
FEATURES
Cathodic Electro Deposition (CED) Coating
Advanced Electrical Design
Wide Voltage Range Operability
Lightweight and Compact Design
High Suction Lift
Enhanced Safety Features
Dynamically Balanced Rotating Parts
TOP - Thermal Overload Protector
Shielded Ball Bearing
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
AARNA
AARNA SPECIFICATIONS
| Head | 6 to 21 meters |
|---|---|
| Capacity Range | 1980 to 680 LPH |
| Power Rating | 0.37 kW / 0.5 HP |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation Class | B Class |
MATERIAL OF CONSTRUCTION
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminium |
| Pump Shaft | Carbon Steel |
| Cover NDE | Aluminium |
| Seal | Carbon Vs Ceramic |
APPLICATIONS
Water supply to overhead tanks in bungalows
Gardens / Fountains
Feed water to RO plants
Domestic water supply
Construction sites
Car washing
Lawn sprinklers
FEATURES
Cathodic Electro Deposition (CED) Coating
Advanced Electrical Design
Wide Voltage Range Operability
Lightweight and Compact Design
High Suction Lift
Enhanced Safety Features
Dynamically Balanced Rotating Parts
TOP - Thermal Overload Protector
Shielded Ball Bearing
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
STAR GALAXY
SPECIFICATIONS
| Head | 6 to 21 meters |
|---|---|
| Capacity Range | 1980 to 680 LPH |
| Power Rating | 0.37 kW / 0.5 HP |
| Phase | Single |
| Voltage Range | 180-260 Volts |
| Insulation Class | B Class |
APPLICATIONS
Water Supply to Overhead Tanks
Gardens / Fountains
Feed water to RO
Domestic water supply
Construction sites
Home Pressure Boosting
Car washing
Lawn sprinklers
FEATURES
High Suction Lift
High Quality Aluminium Motor Body
TOP - Thermal Overload Protector
Handle to Enhance Grip and Portability
Easy Maintainable Design
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Dynamically Balanced Rotating Parts
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
Agriculture
V-FLOW
SPECIFICATIONS
| Head | Up to 50 metres |
|---|---|
| Capacity Range | Up to 2560 LPH |
| Power Rating | 0.37- 0.75 kW (0.5- 1.02 HP) |
| Voltage Range | 180 to 240 volts (single phase) |
APPLICATIONS
Water Supply to Overhead Tanks
Gardens / Fountains
Feed water to RO
Domestic water supply
Construction sites
Home Pressure Boosting
Car washing
Lawn sprinklers
FEATURES
High Suction Lift
High Quality Aluminium Motor Body
TOP - Thermal Overload Protector
Handle to Enhance Grip and Portability
Easy Maintainable Design
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Dynamically Balanced Rotating Parts
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
TINY
SPECIFICATIONS
| Head | Up to 15 metres |
|---|---|
| Capacity Range | 600 to 1600 LPH |
| Power Rating | 0.18 kW / 0.25 HP |
| Voltage Range | 180 to 230 volts (single phase) |
APPLICATIONS
Water Supply to Overhead Tanks
Gardens / Fountains
Feed water to RO
Domestic water supply
Construction sites
Home Pressure Boosting
Car washing
Lawn sprinklers
FEATURES
High Suction Lift
High Quality Aluminium Motor Body
TOP - Thermal Overload Protector
Handle to Enhance Grip and Portability
Easy Maintainable Design
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Dynamically Balanced Rotating Parts
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
PEARL
SPECIFICATIONS
| Head | 6 to 26 metres |
|---|---|
| Capacity Range | 400 to 2250 LPH |
| Power Rating | 0.37 kW / 0.5 HP |
| Voltage Range | 180 to 210 volts (single phase) |
APPLICATIONS
Water Supply to Overhead Tanks
Gardens / Fountains
Feed water to RO
Domestic water supply
Construction sites
Home Pressure Boosting
Car washing
Lawn sprinklers
FEATURES
High Suction Lift
High Quality Aluminium Motor Body
TOP - Thermal Overload Protector
Handle to Enhance Grip and Portability
Easy Maintainable Design
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Dynamically Balanced Rotating Parts
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
MINI 28S, MINI 40S, MINI 50S
Specifications
MINI 28S
| Head Range | 6-28m |
|---|---|
| Capacity Range | 720 to 3150 LPH |
| Power Rating | 0.37 to 1.1 kW / 1.5 to 1.0 HP |
| Voltage Range | 180 to 240 volts (single phase), 300 to 440 volts (three phase) |
MINI 40S
| Head Range | 10 to 40 meters |
|---|---|
| Capacity Range | 200 to 3000 LPH |
| Power Rating | 0.37 to 1.1 kW / 1.5 to 1.0 HP |
| Voltage Range | 180 to 240 volts (single phase), 300 to 440 volts (three phase) |
MINI 50S/50C
| Head Range | 10 to 50 meters |
|---|---|
| Capacity Range | 400 to 3200 LPH |
| Power Rating | 0.37 to 1.1 kW / 1.5 to 1.0 HP |
| Voltage Range | 180 to 240 volts (single phase), 300 to 440 volts (three phase) |
MINI 50C
| Head Range | 10 to 50 meters |
|---|---|
| Capacity Range | 520 to 2900 LPH |
| Power Rating | 0.37 to 1.1 kW / 1.5 to 1.0 HP |
| Voltage Range | 180 to 240 volts (single phase), 300 to 440 volts (three phase) |
APPLICATIONS
Water Supply to Overhead Tanks
Gardens/Fountains
Feed Water to RO
Domestic Water Supply
Construction sites
Home Pressure Boosting
Car Washing
Lawn Sprinklers
FEATURES
High Efficiency and Energy Saving Design
High-Grade F - Class Insulation
Thermal Overload Protector (TOP)
Wide Voltage Range
Shielded Ball Bearing
Dynamically Balanced Rotating Parts
Easy Maintainable Designs
High Suction Lift
Enhanced Safety Features
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
MEGA 54S
SPECIFICATIONS
| Head Range | 3 to 32 metres |
|---|---|
| Capacity Range | 504 to 4500 LPH |
| Power Rating | 1.1 kW / 1.5 HP |
| Voltage Range | 180 to 210 volts (single phase), 300 to 440 volts (three phase) |
APPLICATIONS
Water Supply to Overhead Tanks
Gardens/Fountains
Feed Water to RO
Domestic Water Supply
Construction sites
Home Pressure Boosting
Car Washing
Lawn Sprinklers
FEATURES
High Suction Lift
High Quality Aluminium Motor Body
TOP - Thermal Overload Protector
Handle to Enhance Grip and Portability
Easy Maintainable Design
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Dynamically Balanced Rotating Parts
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
JALRAAJ ULTRA
Specifications
JALRAAJ ULTRA
| Head Range | 6 to 26 metres |
|---|---|
| Capacity Range | 3350 LPH |
| Power Rating | 0.37 kW / 0.5 HP |
| Voltage Range | 180 to 220 volts (single phase) |
JALRAAJ 1 ULTRA
| Head Range | 6 to 30 metres |
|---|---|
| Capacity Range | 1300 to 3300 LPH |
| Power Rating | 0.75 kW / 1.0 HP |
| Voltage Range | 180 to 220 volts (single phase) |
APPLICATIONS
Water Supply to Overhead Tanks
Gardens/Fountains
Feed Water to RO
Domestic Water Supply
Construction sites
Home Pressure Boosting
Car Washing
Lawn Sprinklers
FEATURES
High Suction Lift
High Quality Aluminium Motor Body
TOP - Thermal Overload Protector
Handle to Enhance Grip and Portability
Easy Maintainable Design
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Dynamically Balanced Rotating Parts
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain

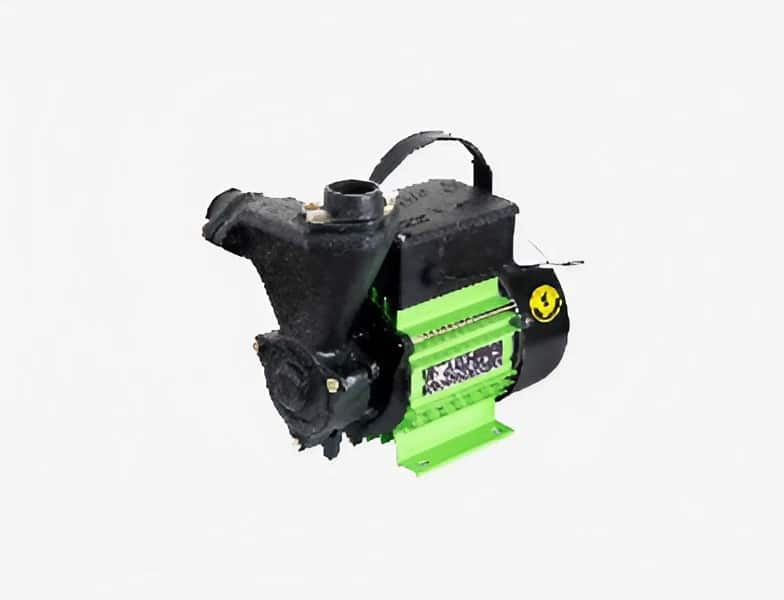

CHHOTU
Specifications
CHHOTU
| Head Range | 6 to 26 metres |
|---|---|
| Capacity Range | 360 to 1980 LPH |
| Power Rating | 0.37 kW / 0.5 HP |
| Voltage Range | 180 to 240 volts (single phase) |
CHHOTU STAR ULTRA
| Head Range | 6 to 32 metres |
|---|---|
| Capacity Range | 500 to 2880 LPH |
| Power Rating | 0.75 kW / 1.0 HP |
| Voltage Range | 180 to 220 volts (single phase) |
APPLICATIONS
Water Supply to Overhead Tanks
Gardens/Fountains
Feed Water to RO
Domestic Water Supply
Construction sites
Home Pressure Boosting
Car Washing
Lawn Sprinklers
FEATURES
High Suction Lift
High Quality Aluminium Motor Body
TOP - Thermal Overload Protector
Handle to Enhance Grip and Portability
Easy Maintainable Design
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Dynamically Balanced Rotating Parts
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
CMS
SPECIFICATIONS
| Head | Up to 42 metres |
|---|---|
| Capacity Range | Up to 3820 LPH |
| Power Rating | 0.37 to 0.75 kW (0.5 to 1 HP) |
| Voltage Range | 180 to 240 volts (single phase) |
APPLICATIONS
Water Supply to Overhead Tanks
Gardens / Fountains
Feed water to RO
Domestic water supply
Construction sites
Home Pressure Boosting
Car washing
Lawn sprinklers
FEATURES
High Suction Lift
High Quality Aluminium Motor Body
TOP - Thermal Overload Protector
Handle to Enhance Grip and Portability
Easy Maintainable Design
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Dynamically Balanced Rotating Parts
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
CBR 140
SPECIFICATIONS
| Head | Up to 42 metres |
|---|---|
| Capacity Range | Up to 3820 LPH |
| Power Rating | 0.37 to 0.75 kW (0.5 to 1 HP) |
| Voltage Range | 180 to 240 volts (single phase) |
APPLICATIONS
Water Supply to Overhead Tanks
Gardens / Fountains
Feed water to RO
Domestic water supply
Construction sites
Home Pressure Boosting
Car washing
Lawn sprinklers
FEATURES
High Suction Lift
High Quality Aluminium Motor Body
TOP - Thermal Overload Protector
Handle to Enhance Grip and Portability
Easy Maintainable Design
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Dynamically Balanced Rotating Parts
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Fountain
K-BOOSTER
TECHNICAL SPECIFICATIONS
| Head | Up to 28 meters |
|---|---|
| Discharge Range | Up to 2050 LPH |
| Power Rating | 0.37 kW (0.5 HP) |
| Pressure Range | Up to 2.4 kg/cm |
| Voltage Range | 180 to 260 Volts (Single phase) |
| Insulation | B Class |
| Protection | IP 44 |
| Tank Size | 2 Litres |
APPLICATIONS
KBL ‘s K-Booster pressure-boosting pump is here to make your life easier. Just fix it and get rid of your daily water flow problems to focus on your other productive tasks. The compact and robust pump is primarily designed to eliminate low water pressure problems in residential complexes, such as bungalows, farm-house villas, or small housing societies, at an efficient cost. It is a small-sized but unique pump that packs quite a punch, easily pumping water to the higher floors while maintaining water pressure. It is the little master that you need for your household.
Bathroom Showers
Consistent pressure at multi outlets
Washing machine, Gas Geyser
Pressurised washing of vehicles
Kitchenware washing
FEATURES
Fully Automatic System
Compact and Robust Design
Durable Component
Thermal Overload Protector(TOP)
Y- strainer
Primary Usage
Residential Apartment
Residential Apartments
Water Supply
High Lifter – HL series
TECHNICAL SPECIFICATIONS
| Head | Up to 50 metres |
|---|---|
| Discharge Range | Up to 75 LPM |
| Power Rating | 0.37 to 0.93 kW (0.5 to 1.25 HP) |
| Voltage Range | 240 volts ± 10% |
APPLICATIONS
KBL ‘s High Lifter (HL) pump series, as the name suggests is designed to lift water to greater height at a higher pressure, which makes it ideal for a wide range of domestic applications. It can be duly converted into a new generation of pressure boosting system that can be immensely useful for lifting water while maintaining uniform pressure across all levels in multi-storey apartments and bungalows as well as for pumping water from shallow wells and tanks .
Lifting water to apartments and bungalows
Pumping water from shallow wells and tanks
Suitable for pressure boosting system
FEATURES
Fully Automatic System
Compact and Robust Design
Durable Component
Thermal Overload Protector(TOP)
Y- strainer
Primary Usage
Residential Apartment
Residential Apartments
Water Supply
CPBS
SPECIFICATIONS
| Head | Up to 52 metres |
|---|---|
| Discharge Range | Up to 140 LPM |
| Power Rating | 0.4 to 1.1 kW (0.6 to 1.5 HP) |
| Pressure Range | Up to 4.4 kg/cm |
| Voltage Range | 180 to 240 volts (single phase) |
| Insulation | B class |
| Protection | IP 44 |
| Tank Size | 24 liters |
APPLICATIONS
Consistent Pressure at Multi-outlets
Multi Jet Shower Panels
Washing Machine, Hot Water Geyser and Gas Geyser
Pressurised Washing of Vehicles
Kitchenware Washing
FEATURES
Compact, Reliable and Silent
TOP - Thermal Overload Protector
Diaphragm Type Pressure Tank
Reliable and Durable Components
Easy Maintainable Designs
Primary Usage
Residential Apartment
Residential Apartments
Water Supply
ETERNA CW
MATERIAL OF CONSTRUCTION
| Impeller | Cast Iron |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Carbon Steel |
SPECIFICATIONS
| Head Range | Up to 70 metres |
|---|---|
| Discharge Range | Up to 4800 LPM |
| Power Ratings | 0.75 to 15 kW (1 to 20 HP) |
| Voltage Range | 380 to 440 volts (three phase) |
| Insulation | B / E class |
| Protection | IP 68 |
| pH Value | 6.5 to 7.5 |
| Maximum Ambient | 40° C temperature |
| Maximum Density | ≤ to 1050 kg/m3 |
| Consistency of Medium | < 1.2 x 103 kg/m3 |
APPLICATIONS
Sewage Pumping
Dewatering from Basements, Multi-storeys, Shopping Malls, Godowns, etc.
Clear Water Handling at High Pressure in Industries
Construction Site
Dewatering Foundation, Trenches and Pits
Flood Water Handling
FEATURES
High Efficiency and Energy Saving Design
Easy Maintainable Design
CED – Cathode Electro Deposition Coating
Robust Construction
Replaceable Wearing Parts
Dynamically Balanced Rotating Parts
Primary Usage
Sewage Dewatering
Residential Apartments
Overhead Tank

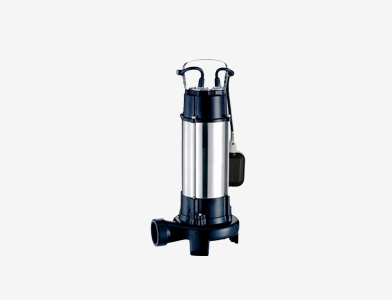

SW / BW
Material
SW
| Impeller | Noryl |
|---|---|
| Delivery Casing | Stainless Steel |
| Motor Body | Stainless Steel |
| Pump Shaft | Stainless Steel |
BW
| Impeller | Cast Iron |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Cutter | 40 Cr Steel |
Specifications
| Head Range | Up to 12 metres |
|---|---|
| Discharge Range | Up to 330 LPM |
| Power Ratings | 0.75 to 1.8 Kw (1 to 2.5 HP) |
| Voltage Range | 180 to 240 volts (single phase) |
| Protection | IP 68 |
| Insulation | F class (SW); B class (BW) |
| Cable Length | 9.5 metres |
| pH Value | 4 to 10 |
| Liquid Temperature | 40o C |
APPLICATIONS
Removing Stagnant Water from Basement/Underground Parkings/Garages, etc.
Draining Accumulated Storm Water during Monsoon
Emptying Water Tanks and Pits for Cleaning
Draining Waste Water from Kitchens, Hotels, Clubs, etc.
Removing Surplus Water from Sumps
FEATURES
Automatic On-Off Switch
Ready to Use
Corossion-free
TOP - Thermal Overload Protector
Primary Usage
Sewage Dewatering
Residential Apartments
Overhead Tank
ETERNA CW
MATERIAL OF CONSTRUCTION
| Impeller | Cast Iron |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Carbon Steel |
SPECIFICATIONS
| Head Range | Up to 70 metres |
|---|---|
| Discharge Range | Up to 4800 LPM |
| Power Ratings | 0.75 to 15 kW (1 to 20 HP) |
| Voltage Range | 380 to 440 volts (three phase) |
| Insulation | B / E class |
| Protection | IP 68 |
| pH Value | 6.5 to 7.5 |
| Maximum Ambient | 40° C temperature |
| Maximum Density | ≤ to 1050 kg/m3 |
| Consistency of Medium | < 1.2 x 103 kg/m3 |
APPLICATIONS
Sewage Pumping
Dewatering from Basements, Multi-storeys, Shopping Malls, Godowns, etc.
Clear Water Handling at High Pressure in Industries
Construction Site
Dewatering Foundation, Trenches and Pits
Flood Water Handling
FEATURES
High Efficiency and Energy Saving Design
Easy Maintainable Design
CED – Cathode Electro Deposition Coating
Robust Construction
Replaceable Wearing Parts
Dynamically Balanced Rotating Parts
Primary Usage
Sewage Dewatering
Residential Apartments
Overhead Tank
ANNIKA
Specifications
ANNIKA - I (Bronze)
| Head Rangex | 6-24m |
|---|---|
| Capacity Range | 2600 to 700 LPH |
| Power Rating | 0.75 kW/1 HP |
| Phase | Single |
| Voltage Range | 160-260 Volts |
| Insulation | ‘B’ Class |
ANNIKA - II (Bronze)
| Head Range | 6-21m |
|---|---|
| Capacity Range | 2000 to 500 LPH |
| Power Rating | 0.37 kW/0.5 HP |
| Phase | Single |
| Voltage Range | 160-260 Volts |
| Insulation | ‘B’ Class |
Material of Construction
| Impeller | Brass |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminum |
| Shaft | Carbon Steel |
| Cover NDE | Aluminum |
| Mechanical Seal/th> | Carbon Vs. Ceramic |
APPLICATIONS
Water supply to overhead tanks in bungalows
Domestic water supply
Feed water to RO plants
Construction sites
Lawn sprinklers
Garden and fountains
Car washing
FEATURES
High Efficiency and Energy Saving Design
Wide Voltage Range
Shielded Ball Bearing
Dynamically Balanced Rotating Parts
Easy Maintainable Designs
High Suction Lift
Enhanced Safety Features
Cathodic Electro Deposition (CED) Coating
Light Weight and Compact Design
Primary Usage
Residential Apartments
Overhead Tank
Water Supply
Water Storage
Fountain
DC
Overview
SPECIFICATIONS
| Head Range | Up to 25 metres |
|---|---|
| Capacity Range | Up to 4.6 LPS |
| Power Ratings | 0.37 to 0.55 Kw (0.5 to 0.75 HP) |
| Voltage Range | 180 to 260 volts (single phase) |
MATERIAL OF CONSTRUCTION
| Impeller | Cast Iron for DC Pumps, Noryl for DC-4M |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Carbon Steel |
APPLICATION
Domestic and community water supply
Gardening and small farm irrigation
Lawn sprinklers
Fountains
FEATURES
Wide Voltage Design
Designed to Prevent Overloading
Dynamically Balanced Rotating Parts
Replaceable Wearing Parts
Automatic Air Release
CED – Cathode Electro Deposition Coating
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Primary Usage
Water Supply
Fountain
Agriculture Irrigation
Agriculture
PAMBA PUZHA
Overview
SPECIFICATIONS
| Head Range | Up to 18 metres |
|---|---|
| Discharge Range | Up to 1.9 LPS |
| Power Ratings | 0.37 kW (0.5 HP) |
| Voltage Range | 180 to 240 Volts |
MATERIAL OF CONSTRUCTION
| Impeller | Noryl |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Aluminium |
| Pump Shaft | Carbon Steel |
APPLICATION
Domestic and community water supply
Gardening and small farm irrigation
Lawn sprinklers
Fountains
Water transfer and circulation
FEATURES
CED – Cathodic Electro Deposition
High Efficiency and Energy Saving Design
Designed to Prevent Overloading
Light Weight and Compact Design
Replaceable Wearing Parts
Dynamically Balanced Rotating Parts
Wide Voltage Design
Shielded Ball Bearing
Provision for Air Release and Priming
Primary Usage
Water Supply
Fountain
Agriculture Irrigation
Water Storage
KDS SINGLE PHASE
Overview
SPECIFICATIONS
| Head Range | Up to 52 metres |
|---|---|
| Discharge Range | Up to 28 LPS |
| Power Ratings | 0.37 to 3.7 kW (0.5 to 5.0 HP) |
| Voltage Range | 180 to 240 volts (single phase) & 120 to 220 volts (low voltage) & 230 to 400 volts (“P” series) | Insulation | B / F class | Protection | IP 44 / IP 55 |
MATERIAL OF CONSTRUCTION
| Cast Iron/Noryl | Noryl |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Carbon Steel |
| Sealing | Mechanical Seal |
APPLICATION
Gardening and Small Farm Irrigation
Lawn sprinklers
Water Supplies for High Rise Building
Domestic and Community Water Supply
Water transfer and circulation
FEATURES
Wide Voltage Design
Replaceable Wearing Parts
TOP - Thermal Overload Protector
CED – Cathode Electro Deposition Coating
Automatic Air Release
High Efficiency and Energy Saving Design
Designed to Prevent Overloading
Dynamically Balanced Rotating Parts
Primary Usage
Water Supply
Residential Apartments
Agriculture Irrigation
KAM
Overview
SPECIFICATIONS
| Head Range | Up to 19 metres |
|---|---|
| Discharge Range/th> | Up to 14.2 LPS |
| Power Ratings | 0.37 to 1.1 kW/ (0.5 to 1.5 HP) |
| Voltage Range | 120 to 220 volts (single phase low voltage) & 180 to 240 volts (single phase) |
| Insulation | B class |
| Protection | IP 44 |
MATERIAL OF CONSTRUCTION
| Impeller | Cast Iron |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | C 40 Carbon Steel/Stainless Steel |
APPLICATION
Gardening and Small Farm Irrigation
Lawn sprinklers
Construction Site
Domestic and Community Water Supply
Water transfer and circulation
FEATURES
Wide Voltage Design
Automatic Air Release
Flatter Efficiency Curve
Designed to Prevent Overloading
Dynamically Balanced Rotating Parts
CED – Cathode Electro Deposition Coating
Easy Maintainable Design
High Efficiency and Energy Saving Design
Primary Usage
Water Supply
Fountain
Agriculture Irrigation
Agriculture
Hasti
Overview
SPECIFICATIONS
| Head Range | Up to 25 metres |
|---|---|
| Capacity | Up to 4.6 LPS |
| Power Ratings | 0.37 to 0.55 kW (0.5 to 0.75 HP) |
| Voltage Range | 160 to 240 volts (single phase) |
MATERIAL OF CONSTRUCTION
| Impeller | Cast Iron for DC Pumps, Noryl for DC-4M, |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Carbon Steel |
APPLICATION
Gardening and Small Farm Irrigation
Lawn sprinklers
Construction Site
Domestic and Community Water Supply
Water transfer and circulation
FEATURES
Wide Voltage Design
Designed to Prevent Overloading
Dynamically Balanced Rotating Parts
Replaceable Wearing Parts
Automatic Air Release
CED – Cathode Electro Deposition Coating
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Primary Usage
Water Supply
Fountain
Agriculture Irrigation
Agriculture
Hasti
Overview
SPECIFICATIONS
| Head Range | Up to 25 metres |
|---|---|
| Capacity | Up to 4.6 LPS |
| Power Ratings | 0.37 to 0.55 kW (0.5 to 0.75 HP) |
| Voltage Range | 160 to 240 volts (single phase) |
MATERIAL OF CONSTRUCTION
| Impeller | Cast Iron for DC Pumps, Noryl for DC-4M, |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Carbon Steel |
APPLICATION
Gardening and Small Farm Irrigation
Lawn sprinklers
Construction Site
Domestic and Community Water Supply
Water transfer and circulation
FEATURES
Wide Voltage Design
Designed to Prevent Overloading
Dynamically Balanced Rotating Parts
Replaceable Wearing Parts
Automatic Air Release
CED – Cathode Electro Deposition Coating
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Primary Usage
Water Supply
Fountain
Agriculture Irrigation
Agriculture

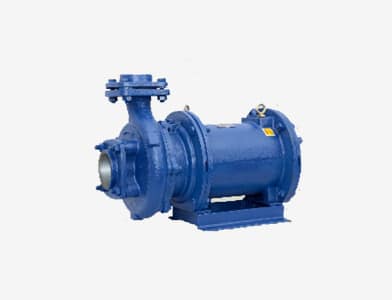

Open well Submersible Pumps - KOSi
Overview
SPECIFICATIONS
| Head Range | Up to 42 metres |
|---|---|
| Discharge Range | Up to 9.7 LPS |
| Power Ratings | 0.37 to 1.5 kW (0.5 to 2 HP) |
| Voltage Range | 160 to 240 volts (single phase) |
| Insulation | PP class/td> |
| Protection | IP 68/td> |
MATERIAL OF CONSTRUCTION
| Impeller | Cast Iron/Noryl |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron / Stainless Steel |
| Shaft | Stainless Steel |
APPLICATION
Gardening and Small Farm Irrigation
Lawn sprinklers
Construction Site
Domestic and Community Water Supply
Water transfer and circulation
FEATURES
Wide Voltage Design
Designed to Prevent Overloading
Dynamically Balanced Rotating Parts
Replaceable Wearing Parts
Automatic Air Release
CED – Cathode Electro Deposition Coating
Shielded Ball Bearing
High Efficiency and Energy Saving Design
Primary Usage
Overhead Tank
Water Supply
Fountain
Agriculture Irrigation
KOS M THREE PHASE
SPECIFICATIONS
| Head Range | Up to 38 metres |
|---|---|
| Discharge Range | Up to 11 LPH |
| Power Ratings | 0.37 to 1.5 Kw (0.5 to 2 HP) |
| Voltage Range | 300 to 440 volts (three phase) |
| Insulation | B class |
| Protection | IP 68 |
MATERIAL OF CONSTRUCTION
| Impeller | Cast Iron/Noryl |
|---|---|
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Shaft | Stainless Steel |
APPLICATIONS
Domestic and Community Water Supply
Gardening and Small Farm Irrigation
Water Fountains
Construction Site
Water Supply to Overhead Tanks
FEATURES
Wide Voltage Design
Flatter Efficiency Curve
Dynamically Balanced Rotating Parts
Replaceable Wearing Parts
Easy Maintainable Design
CED – Cathode Electro Deposition Coating
High Efficiency and Energy Saving Design
Advanced Water-cooled Motor Design
Primary Usage
Overhead Tank
Water Supply
Agriculture Irrigation
Agriculture
JVS
MATERIAL OF CONSTRUCTION
JVS
| Impeller | Stainless Steel |
|---|---|
| Outlet (NRV Body) | Cast Iron |
| Motor Body | Mild Steel |
| Pump Shaft | Stainless Steel |
JVSN
| Impeller | Cast Iron |
|---|---|
| Outlet (NRV Body) | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Stainless Steel |
SPECIFICATIONS
| Head | Up to 147 metres |
|---|---|
| Capacity | Up to 840 LPM / 50 m3/hr |
| Power Ratings | 2.2 to 15 kW / 3 to 20 HP |
| Voltage Range | 200 to 440 volts (three phase) |
| Insulation | B class |
| Protection | IP 68 |
APPLICATIONS
Horticulture & Agriculture
Sprinkler and Drip Irrigation
Water Supplies for High Rise Buildings
Rural Water Supply
Domestic and Community Water Supply
FEATURES
Wide Voltage Range
Design to Prevent Overloading
High Efficiency and Energy Saving Design
Dynamically Balanced Rotating Parts
Advanced Water-cooled Motor Design
Wide Voltage Motor Design with 100% Copper Rotor
Easy Maintainable Design
High-head Applications
Primary Usage
Water Supply
Agriculture Irrigation
Agriculture
Borewell Submersible Pump - LEHR
SPECIFICATIONS
| PUMPSHead Range | Up to 165 Metres |
|---|---|
| Discharge Range | Up to 105 LPM |
| Power Ratings | 0.37 to 1 .5 kW (0.5 to 2.0 HP) |
| Voltage Range | 140 to 240 Volts (Single Phase) |
| Type of Cooling | Water Cooled |
| Protection | IP68Pump |
| Insulation | B – Class |
MATERIAL OF CONSTRUCTION
| Pump Housing | Stainless Steel |
|---|---|
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Pump Bushes | NBR |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
APPLICATIONS
Domestic and Community Water Supply
Rural water supply
Gardening and Small Farm Irrigation
Construction site
Water supplies for high rise building
FEATURES
Wide Voltage Range Operability
High Efficiency and Energy-saving Design
Dynamically Balanced Rotating Parts
Longer and Trouble Free Life
Advanced Water Cooled Motors Designs
Sand Fighter Designs
CED - Cathodic Electro Deposition Coating
Nationwide Service Network
Primary Usage
Water Supply
Agriculture Irrigation
Agriculture

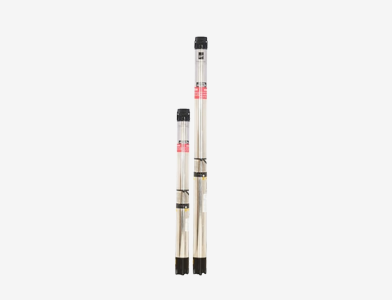

Borewell Submersible Pump- KS3 Purna
SPECIFICATIONS
| Power Ratings | 0.37 to 1.1 kW / 0.5 to 1.5 HP |
|---|---|
| Head Range | Upto 56 metres |
| Discharge Range | Upto 95 LPM |
| Voltage Range | 160 to 240 Volts (Single Phase) |
| Type of Cooling | Water Filled |
| Protection | IP 68 |
| Insulation | B – Class |
MATERIAL OF CONSTRUCTION
| Pump Housing | Stainless Steel |
|---|---|
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
FEATURES
Wide Voltage Design
Designed To Prevent Overloading
High Efficiency And Energy Saving Design
Dynamically Balanced Rotating Parts
Longer And Trouble Free Life
Advance Water Cooled Motors Designs
Wide Voltage Motor Designs with 100% Copper Rotor
Easy Maintainable Designs
Primary Usage
Residential Apartment
Overhead Tank
Water Supply
Agriculture Irrigation
Borewell Submersible Pump - NEO
SPECIFICATIONS
| Head Range | Upto 165 metres |
|---|---|
| Discharge Range | Upto 105 LPM |
| Power Ratings | 0.37 to 1.5 kW, (0.5 to 2.0 HP) |
| Voltage Range | 180 to 240 Volts (Single Phase) |
| Type of Cooling | Water Cooled |
| Protection | IP 68 |
| Insulation | B – Class |
MATERIAL OF CONSTRUCTION
| Pump Housing | Stainless Steel |
|---|---|
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Pump Bushes | NBR |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
Applications
Domestic and community water supply
Rural water supply
Construction site
Gardening and small farm irrigation
Water supplies for high rise building
FEATURES
Wide Voltage Range Operability
High Efficiency And Energy Saving Design
Dynamically Balanced Rotating Parts
Longer And Trouble Free Life
Advance Water Cooled Motors Designs
Sand Fighter Designs
CED - Cathodic Electro Deposition Coating
Nationwide Service Network
Primary Usage
Water Supply
Agriculture Irrigation
